Front-End Wafer Fab Equipment

Semiconductor Thermal Processing Equipment

Browse and source used semiconductor thermal processing equipment for oxidation, diffusion, annealing and rapid thermal processing. The category includes vertical and horizontal batch furnaces, single-wafer RTP and RTA platforms, and specialty thermal systems.

For replacement, capacity expansion or continuation of an established process, each system should be reviewed against the process purpose, tube or process-module configuration, thermal budget, atmosphere and wafer handling.

Send the manufacturer, model, wafer size or target thermal profile to begin reviewing suitable equipment, configuration compatibility and practical fab requirements.

Browse Available Equipment Discuss an Equipment Requirement
Batch FurnacesMulti-wafer oxidation, diffusion and longer thermal cycles
Vertical & HorizontalDifferent layouts, loading methods and automation levels
RTP / RTASingle-wafer rapid heating and controlled thermal exposure
Specialty AnnealMillisecond, laser or other specialized thermal treatment
Current Equipment

02Available Used Semiconductor Thermal Processing Equipment

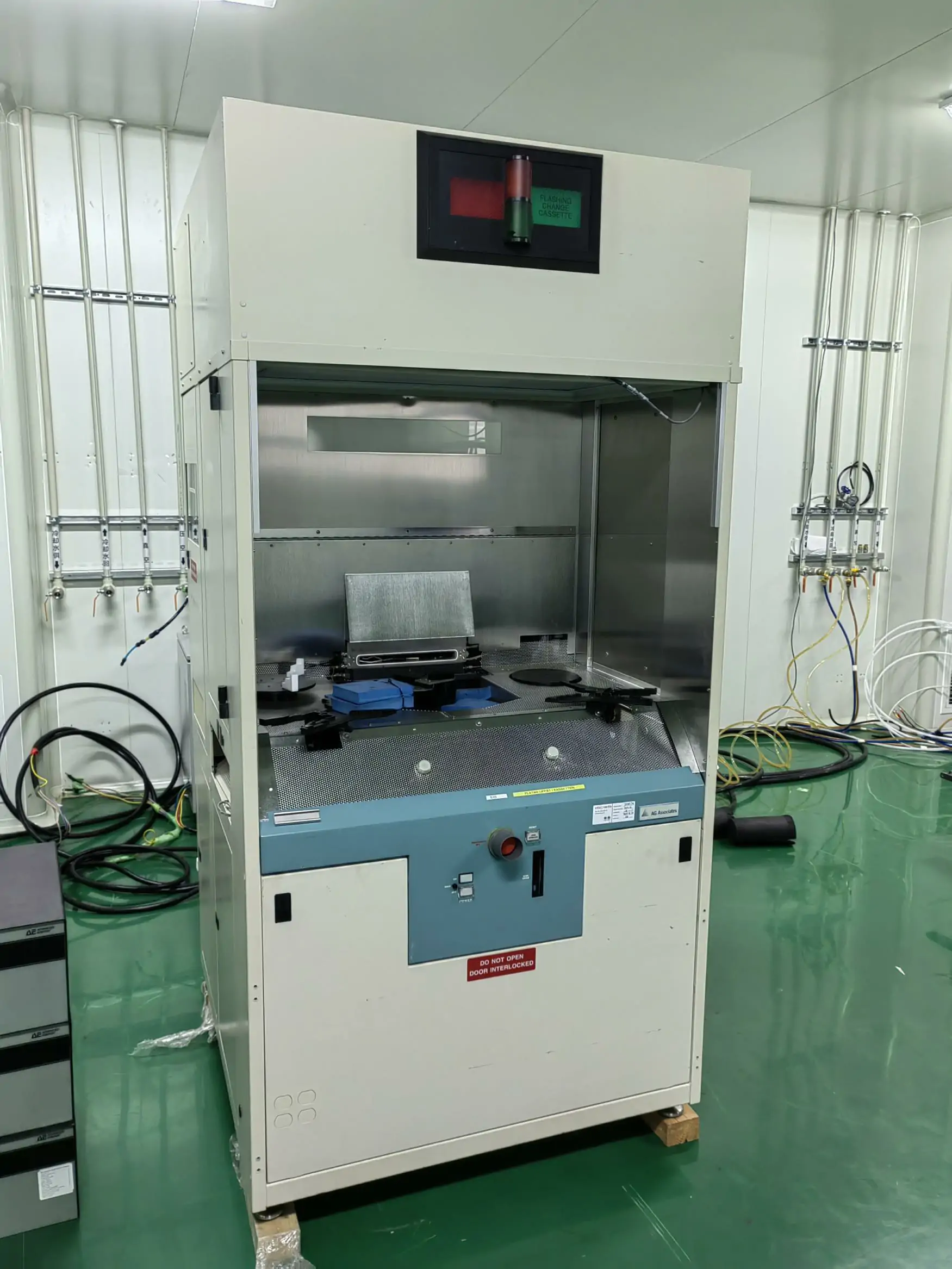

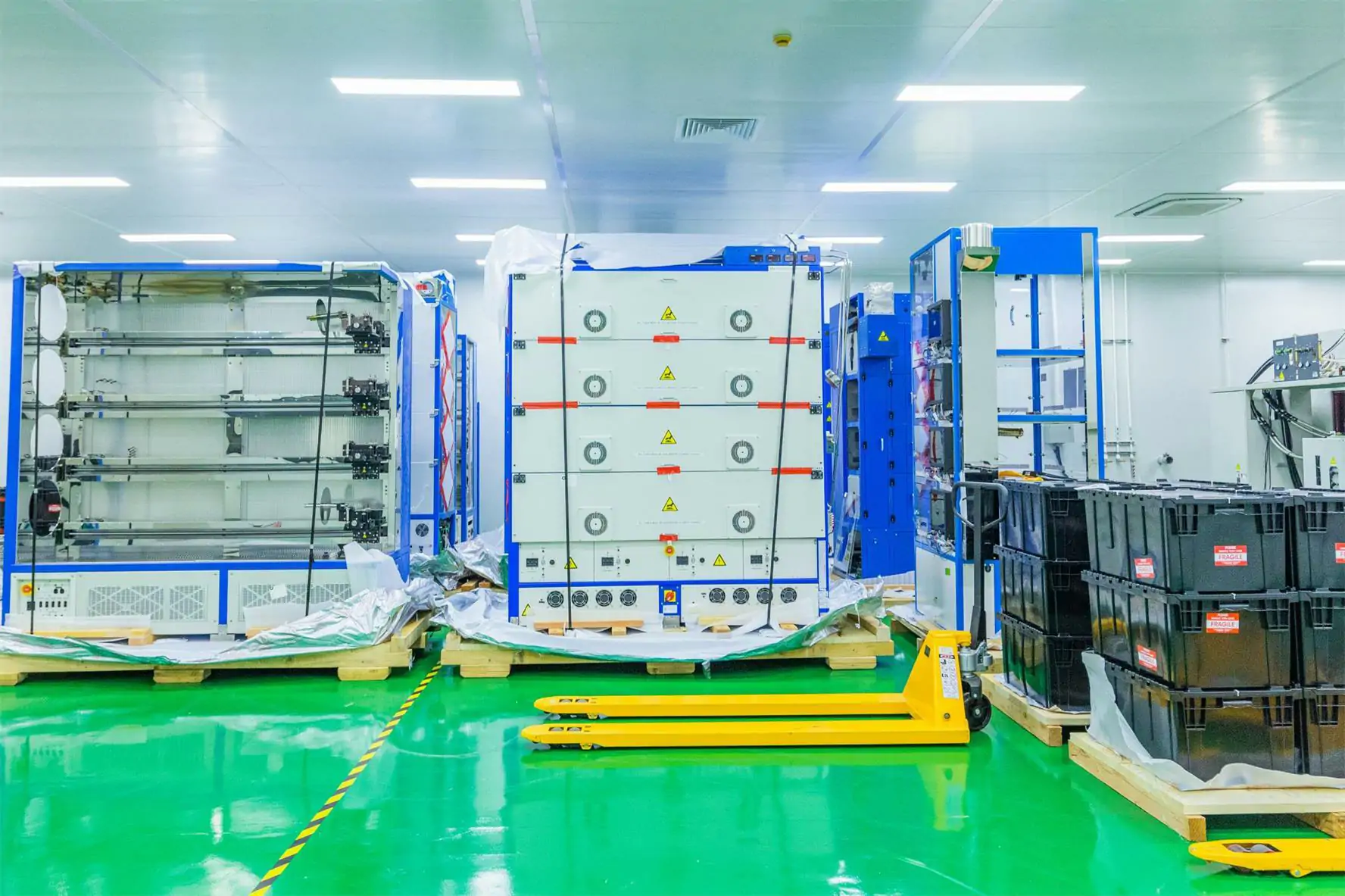

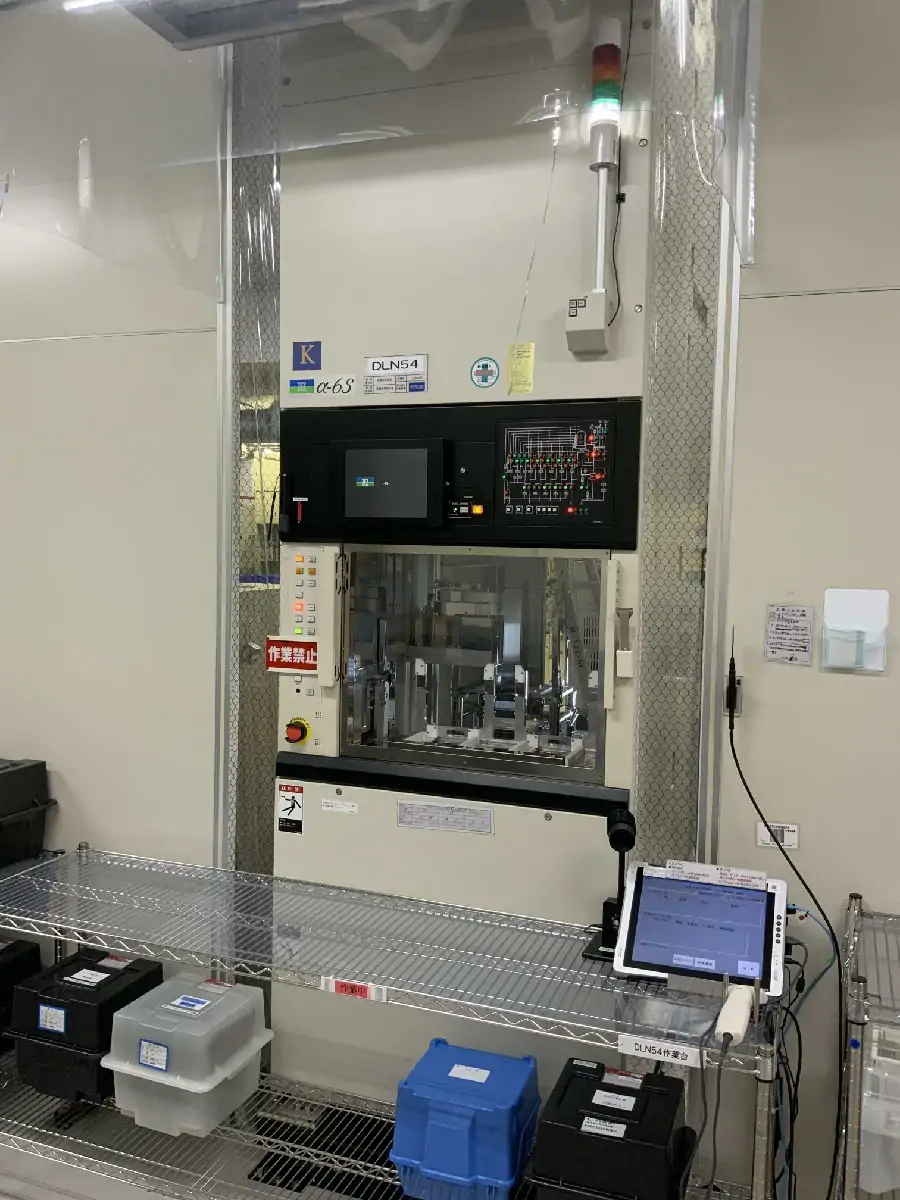

Browse our current selection of used thermal processing systems for semiconductor wafer manufacturing. The process tube or module, heater or lamp system, gas configuration, quartzware, temperature controls and wafer handling must be confirmed for the specific machine.

Equipment Sourcing

Need a Specific Furnace or RTP Platform?

If the required platform is not shown in the current list, send the manufacturer, model, process purpose, wafer size or existing production platform. We can review incoming equipment and request-based sourcing options.

Send a Model or Platform Request
Equipment Direction

03Choosing Between Batch Furnaces, RTP and Specialty Thermal Systems

Start with wafer volume, thermal-cycle length and the level of temperature-time control required by the process. These three directions help narrow the search before a specific machine is reviewed.

Choose the processing direction first, then verify the actual configuration.

The equipment name alone is not enough. Final suitability still depends on the tube or process module, heating system, gas configuration, temperature controls and wafer handling included with the machine.

BF

Batch Furnace Systems

A practical starting point for multi-wafer processes that usually run for longer thermal cycles.

Best Starting Point For

  • Dry or wet oxidation
  • Diffusion or dopant drive-in
  • Long-duration annealing
  • Other established batch thermal processes
What Still Needs Review

Vertical or horizontal layout, tube and gas configuration, batch capacity, wafer boat, loading automation and previous process use.

RTP

RTP / RTA Systems

A practical starting point for single-wafer processes that require rapid heating, cooling and tighter thermal-budget control.

Best Starting Point For

  • Implant activation
  • Rapid thermal oxidation or nitridation
  • Silicide formation
  • Soak, spike or other short thermal cycles
What Still Needs Review

Ramp rate, peak temperature, dwell time, lamp or heater system, temperature measurement and single-wafer handling.

ST

Specialty Thermal Systems

A practical starting point for specialized wafer materials, very short process windows or controlled energy-delivery methods.

Best Starting Point For

  • Millisecond anneal
  • Laser-based thermal processing
  • Special high-temperature treatment
  • Special atmosphere or vacuum processes
What Still Needs Review

Wafer material, energy-delivery design, atmosphere, process window, software and the actual platform configuration.

i
These categories provide a starting direction rather than a fixed assignment. Some batch furnace platforms may also support LPCVD or another process depending on the installed tube, gas system and original configuration.
Platform Fit Review

04Five Checks Before Buying a Used Thermal Processing System

Reaching the target temperature is only one part of the decision. A used furnace or RTP platform should also be checked for process history, thermal control, wafer handling, facility requirements and long-term operating condition.

Process History Thermal Control Wafer Handling Atmosphere & Facilities Long-Term Operation
1

Process Use and Furnace History

Review the intended oxidation, diffusion, anneal or specialty process, dry or wet operation where relevant, previously processed materials, and available tube, reactor and quartzware condition or process-history records.

Avoid selecting a machine that appears suitable by model name but has a former process use or contamination risk that does not fit the target product.
2

Thermal Profile and Temperature Control

Review the target temperature, ramp-up and ramp-down behavior, soak or spike capability, available uniformity information, heating zones, lamps and sensor configuration.

Avoid a system that reaches the target temperature but cannot meet the required thermal budget, ramp-rate or temperature-control conditions during qualification.
3

Wafer, Boat and Automation

Review wafer size and material, batch capacity, wafer boat and quartzware, cassette or FOUP format, loader, robot and transfer configuration.

Avoid purchasing a process-capable platform whose wafer size, boat or handling configuration cannot connect with the existing production line.
4

Atmosphere and Facility Requirements

Review process atmosphere, gas delivery, vacuum, exhaust and abatement, cooling, electrical load, safety interlocks and the included supporting systems.

Avoid receiving a machine before confirming that the available gas, vacuum, exhaust, cooling and utility infrastructure can support its actual configuration.
5

Long-Term Operating Condition

Review heater or lamp condition, available tube-condition information, seals, temperature sensors, controllers, software versions, maintenance records and known parts requirements.

Avoid adding a tool that works technically but creates excessive downtime, maintenance burden or replacement cost during production.

Review the process history, thermal control, wafer handling and facility conditions before committing to a specific system.

Send the model, current platform, process purpose, wafer size, target temperature or thermal profile, and available equipment information.

Request a Thermal Fit Review
Used Equipment Value

05Why Buyers Consider Used Thermal Processing Equipment

A used thermal platform is most valuable when its actual configuration fits an established recipe, installed base and production environment.

Core Scenario

Continue an Established Thermal Process

A verified thermal recipe can depend on the specific furnace tube, heating zones, gas lines, controller behavior and wafer-handling configuration used to run it.

When an installed system ages or the original platform is no longer practical to replace with new equipment, a sufficiently similar used system may reduce the scope of process transfer and requalification while lowering the initial capital commitment.

A similar platform does not automatically reproduce the existing process. Final compatibility still depends on the actual machine configuration.

Replace an Aging or Discontinued Furnace

Review the same platform family or another suitable system when new equipment is no longer practical for an established process.

Add Batch or Single-Wafer Capacity

Expand production with a platform direction already established on the line while retaining the basic thermal process approach.

Review Related Configuration Requirements

Tube, boat, loader, controller or auxiliary-system requirements can be reviewed together with the main equipment request when sufficient model and configuration information is available.

Delivery and Support

06Delivery and Support for Thermal Processing Systems

Thermal processing systems include fragile quartzware, heating assemblies, temperature-control hardware and automated wafer handling. The actual configuration and delivery scope should be documented clearly before shipment.

01

Before Shipment

  • Confirm the main tool, process tube or module, and included accessories
  • Record the heater or lamp, boat, loader and handling configuration
  • Verify pumps, cooling and other auxiliary equipment included in the scope
  • Collect available manuals, software and facility documentation
  • Define deinstallation, packing, transport and delivery-list responsibilities
02

Transport and Arrival

  • Protect process tubes, wafer boats and fragile quartzware during transit
  • Secure loaders, robots and other moving assemblies
  • Protect heaters, lamps, sensors and vacuum connections
  • Confirm lifting, movement and transport conditions before shipment
  • Inspect packaging, accessories and visible transit damage before installation or power-on
03

Support for Existing or Delivered Systems

  • Review provided alarm logs and fault history
  • Help narrow likely temperature-control, heater, lamp, vacuum or handling issues
  • Review available controller, software and sensor information
  • Identify the tube, boat, quartzware or module information needed for matching
  • Coordinate the next practical troubleshooting, start-up or recovery step

Full on-site installation, process development and long-term maintenance are not included by default. Any such work must be confirmed in the final quotation and service scope.

Request Thermal Processing System Support
FAQ

07Thermal Processing Equipment FAQ

These questions cover the main issues buyers face when reviewing used semiconductor furnaces and rapid thermal processing systems.

What is the difference between a batch furnace and an RTP system?

A batch furnace processes multiple wafers together and is commonly used for oxidation, diffusion and longer thermal cycles. An RTP system usually processes one wafer at a time with faster heating and cooling over a shorter cycle. The correct direction depends on the required thermal budget, throughput, wafer handling and actual equipment configuration.

Can the same furnace platform be configured for oxidation, diffusion, annealing or LPCVD?

Yes. Some platform families can support different processes depending on the installed tube or reactor, gas delivery, temperature configuration and original factory setup. The actual machine configuration and its primary process history must be reviewed rather than relying on the model name alone.

What information is needed to match a thermal processing system to an existing process?

Useful starting information includes the manufacturer and model, current platform, process purpose, wafer size and material, batch or single-wafer requirement, target temperature and treatment time, ramp-rate or thermal-budget requirements, process atmosphere and replacement or capacity goal.

What should be checked before replacing a used furnace or RTP platform?

The review should compare the tube, reactor or process-module history, temperature profile, ramp behavior, wafer handling, gas and exhaust requirements, controller environment, supporting systems and the condition of key heating and quartzware components.

Can you source a thermal processing system that is not currently listed?

Yes. Send the manufacturer, model, wafer size, process purpose or current platform. We can review incoming equipment, available market information and potential system directions for further evaluation. Availability and final scope depend on the specific equipment identified.

08Send Your Thermal Processing Equipment Requirement

Start with a model, nameplate, machine photo or target process requirement. We can review the equipment direction, current availability and the main configuration questions before purchase.

Manufacturer and Model Process Purpose Wafer Size and Material Batch or Single-Wafer Target Temperature or Thermal Profile Photo or Nameplate
